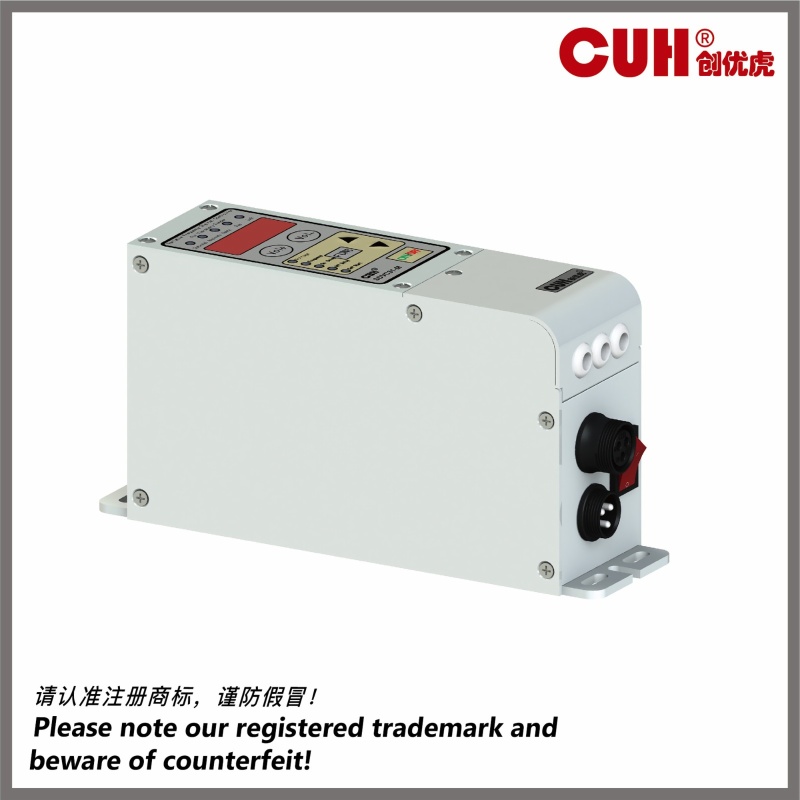

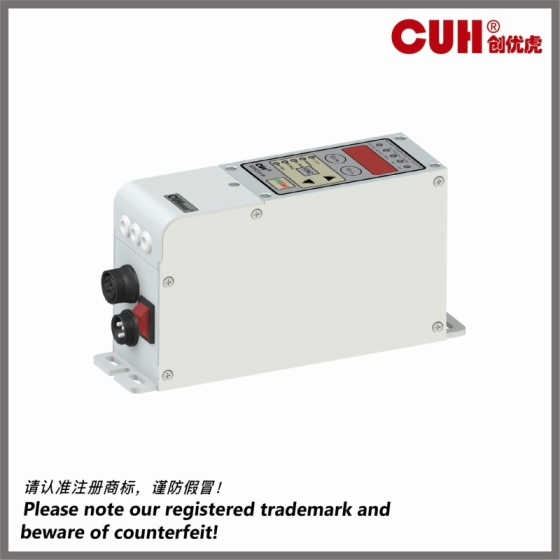

SDVC31-M Variable Frequency Vibratory Feeder Controller SDVC31M:3.0A

  • SDVC31-M Variable Frequency Vibratory Feeder Controller
  • SDVC31-M Variable Frequency Vibratory Feeder Controller
  • SDVC31-M Variable Frequency Vibratory Feeder Controller
  • SDVC31-M Variable Frequency Vibratory Feeder Controller
  • SDVC31-M Variable Frequency Vibratory Feeder Controller
Item Code:SDVC31M:3.0A Features:Features:1.Automatic Voltage Regulation: The built-in Digital Voltage Regulation function can eliminate feeding speed variation caused by mains voltage fluctuation. 2.Soft Startup: In order to avoid sudden shock to the work pieces, the controller can gently increase output voltage from 0 to the pre-set value when startup. 3.Soft Startup Time Setting: Soft Startup Time can be set exactly in digital numbers. 4.Acceleration: Maximum output voltage value of the controller can be increased up to 150% of the input voltage value.
  • Description

Features:
1.Automatic Voltage Regulation: The built-in Digital Voltage Regulation function can eliminate feeding speed variation caused by mains voltage fluctuation.
2.Soft Startup: In order to avoid sudden shock to the work pieces, SDVC31-M Variable Frequency Vibratory Feeder Controller can gently increase output voltage from 0 to the pre-set value when startup.
3.Soft Startup Time Setting: Soft Startup Time can be set exactly in digital numbers.
4.Acceleration: Maximum output voltage value of the controller can be increased up to 150% of the input voltage value.
5.Intelligent Photoelectric Sensing: Our adaptive Intelligent Photoelectric Sensor can help to stall the controller when work-pieces are full or work-piece is empty and can help to fulfill the functions of Soft Startup Time Setting, Startup Delay, Shutdown Delay, and Logical Relation Adjusting.
6.Remote Speed Control: Output voltage of the controller can be controlled by an external potentiometer, a PLC, or a voltage control signal ranging form 1V to 5V.
7.Controlling Output: The Controlling Output signal outgoing from the transistor can coordinate a solenoid valve or other external devices with the controller.
8.Keypad Locking: Press the ‘ON/OFF’ button and hold for 2 seconds to lock all buttons for fear of false operation.
9.Maximum Output Restraint: Maximum output voltage value can be preset to protect the equipment from damages caused by misuse.
10.Halt When Work-pieces Are Full: A NPN sensor can help to stall SDVC31-M Variable Frequency Vibratory Feeder Controller when work-pieces are full and help to fulfill the functions of Soft Startup Time Setting, Startup Delay, Shutdown Delay, and Logical Relation Adjusting.
11.Waveform Index Setting: Operators can weight efficiency and maximum capacity by adjusting this parameter.
12.Default Settings Restore: This function allows the user to restore all default parameter settings and reset the controller.
13.Overheat Protection: SDVC31-M Variable Frequency Vibratory Feeder Controller will halt its output to protect itself when operating temperature is too high.
14.Current Overload Protection: The controller will halt its output to ensure equipment operation safety when operating current exceeds its rated value.
15.Short-Circuit Protection: If output of the controller is short-circuited, the controller will halt its output until restarted.
Dimensions:190*53.6*94.5(L*W*H, mm)
Weight:SDVC31-S:The controller weights 560g without accessory

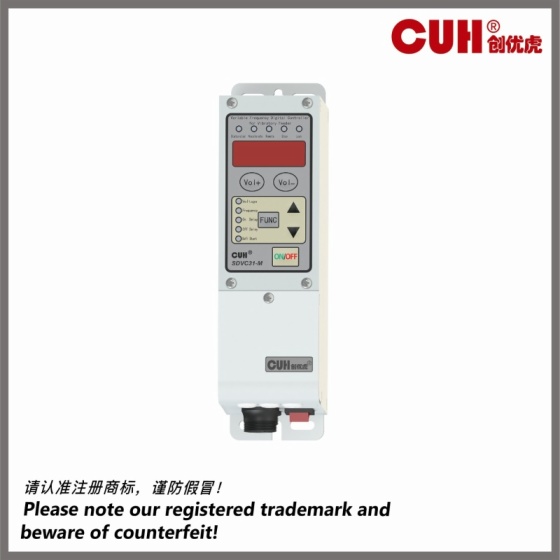

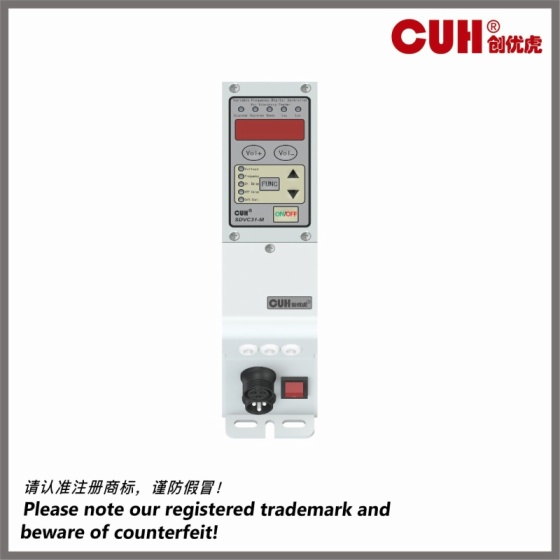

Front View




Bottom View




Signal Interface View


Technical Specifications:

Item

Value

Unit

Description

MIN

MAX

Input Power Voltage

85

260

V

AC RMS Vaule

Output Power Voltage

0

260

V

Less than 150% of Input Power Voltage

Output Current

0

1.5

A

SDVC31-S

0

3

SDVC31-M

Frequency Range

40

400

Hz

Output Power

0

330

VA

SDVC31-S

0

660

SDVC31-M

Output Waveform

Sine

Voltage Adjusting Accuracy

1

V

Frequency Adjusting Accuracy

0.1

Hz

Time Delay Range

0

20

s

Time Delay Accuracy

0.1

s

Soft Startup Time

0

10

s

Auxiliary Power Supply Voltage

22

26

V

24V DC Controlling Power Supply

Auxiliary Power Supply Current

0

200

mA

24V DC Controlling Power Supply

Standby Power Consumption

1.5

3

W

Display Method

5

digit

LED Digital Tube

Control Method

1-5

V

Remote Controlled Voltage

Standard TTL

Electric Level

Switching Signal

6 Buttons plus LED

Touch Button Keyboard

Ambient Temperature

-10

35

Non-condensing

Working Environment Humidity

10

85



Packing Photo
